Sturdily constructed from all-aluminum extrusions.
-
Standard heavy duty OSHA motor mount guard.
-
Motors are totally enclosed, air over with overload protection.
-
Available Accessories: Front Guard and Weather Hoods
-
Used as exhaust fan only. Do not use as a supply fan.
| |

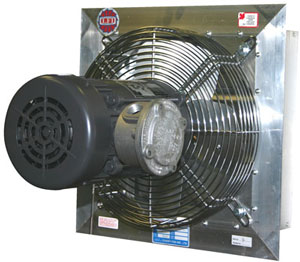

Intake Side View
Explosion proof motors are Class 1-Group D and Class 2-Group EFG |
| Leader Fan Number |
Blade Dia. |
RPM |
H.P. |
Volts |
CFM @ Static Pressure |
Weight
LBS. |
| 0" |
0.1" |
0.125" |
0.250" |
| Two Speed Fan |
|
AX12-4 |
12" |
1725 |
1/3 |
115/230 |
1670 |
1600 |
1575 |
1450 |
49 |
|
AX14-4 |
14" |
1725 |
1/3 |
115/230 |
2190 |
2080 |
2000 |
1950 |
49 |
|
AX16-4 |
16" |
1725 |
1/3 |
115/230 |
2580 |
2480 |
2430 |
2270 |
51 |
|
AX18-4 |
18" |
1725 |
1/3 |
115/230 |
3200 |
3050 |
2950 |
2625 |
56 |
|
AX20-4 |
20" |
1725 |
1/3 |
115/230 |
3640 |
3440 |
3360 |
3140 |
57 |
|
AX24-4 |
24" |
1725 |
1/3 |
115/230 |
5520 |
5410 |
5330 |
5130 |
54 |
.
Options:
|
