Options: Americraft Model #824-1/4-1-TEFC (Size 24", 1/4 HP, 115V, 1 Ph, 780 RPM, TEFC Motor, 4,900 CFM @ 0" S.P.)
Americraft Model #824-1/4-3-TEFC (Size 24", 1/4 HP, 230/460V, 3 Ph, 780 RPM, TEFC Motor, 4,900 CFM @ 0" S.P.)
Americraft Model #824-1/2-1-TEFC (Size 24", 1/2 HP, 115V, 1 Ph, 980 RPM, TEFC Motor, 6,219 CFM @ 0" S.P.)
Americraft Model #824-1/2-3-TEFC (Size 24", 1/2 HP, 230/460V, 3 Ph, 980 RPM, TEFC Motor, 6,219 CFM @ 0" S.P.)
Americraft Model #824-3/4-1-TEFC (Size 24", 3/4 HP, 115/230V, 1 Ph, 1,140 RPM, TEFC Motor, 7,090 CFM @ 0" S.P.)
Americraft Model #824-3/4-3-TEFC (Size 24", 3/4 HP, 230/460V, 3 Ph, 1,140 RPM, TEFC Motor, 7,090 CFM @ 0" S.P.)
Americraft Model #824-1-1-TEFC (Size 24", 1 HP, 115/230V, 1 Ph, 1,250 RPM, TEFC Motor, 7,180 CFM @ 0" S.P.)
Americraft Model #824-1-3-TEFC (Size 24", 1 HP, 230/460V, 3 Ph, 1,250 RPM, TEFC Motor, 7,180 CFM @ 0" S.P.)
Americraft Model #830-1/4-1-TEFC (Size 30", 1/4 HP, 115V, 1 Ph, 540 RPM, TEFC Motor, 7,178 CFM @ 0" S.P.)
Americraft Model #830-1/4-3-TEFC (Size 30", 1/4 HP, 230/460V, 3 Ph, 540 RPM, TEFC Motor, 7,178 CFM @ 0" S.P.)
Americraft Model #830-1/3-1-TEFC (Size 30", 1/3 HP, 115V, 1 Ph, 595 RPM, TEFC Motor, 7,909 CFM @ 0" S.P.)
Americraft Model #830-1/3-3-TEFC (Size 30", 1/3 HP, 230/460V, 3 Ph, 595 RPM, TEFC Motor, 7,909 CFM @ 0" S.P.)
Americraft Model #830-1/2-1-TEFC (Size 30", 1/2 HP, 115V, 1 Ph, 640 RPM, TEFC Motor, 8,507 CFM @ 0" S.P.)
Americraft Model #830-1/2-3-TEFC (Size 30", 1/2 HP, 230/460V, 3 Ph, 640 RPM, TEFC Motor, 8,507 CFM @ 0" S.P.)
Americraft Model #830-3/4-1-TEFC (Size 30", 3/4 HP, 115/230V, 1 Ph, 770 RPM, TEFC Motor, 10,235 CFM @ 0" S.P.)
Americraft Model #830-3/4-3-TEFC (Size 30", 3/4 HP, 230/460V, 3 Ph, 770 RPM, TEFC Motor, 10,235 CFM @ 0" S.P.)
Americraft Model #830-1-1-TEFC (Size 30", 1 HP, 115/230V, 1 Ph, 975 RPM, TEFC Motor, 10,668 CFM @ 0" S.P.)
Americraft Model #830-1-3-TEFC (Size 30", 1 HP, 230/460V, 3 Ph, 975 RPM, TEFC Motor, 10,668 CFM @ 0" S.P.)
Americraft Model #830-1-1/2-1-TEFC (Size 30", 1-1/2 HP, 115/230V, 1 Ph, 1,140 RPM, TEFC Motor, 12,473 CFM @ 0" S.P.)
Americraft Model #830-1-1/2-3-TEFC (Size 30", 1-1/2 HP, 230/460V, 3 Ph, 1,140 RPM, TEFC Motor, 12,473 CFM @ 0" S.P.)
Americraft Model #836-1/3-1-TEFC (Size 36", 1/3 HP, 115/230V, 1 Ph, 460 RPM, TEFC Motor, 9,113 CFM @ 0" S.P.)
Americraft Model #836-1/3-3-TEFC (Size 36", 1/3 HP, 230/460V, 3 Ph, 460 RPM, TEFC Motor, 9,113 CFM @ 0" S.P.)
Americraft Model #836-1/2-1-TEFC (Size 36", 1/2 HP, 115V, 1 Ph, 530 RPM, TEFC Motor, 10,500 CFM @ 0" S.P.)
Americraft Model #836-1/2-3-TEFC (Size 36", 1/2 HP, 230/460V, 3 Ph, 530 RPM, TEFC Motor, 10,500 CFM @ 0" S.P.)
Americraft Model #836-3/4-1-TEFC (Size 36", 3/4 HP, 115/230V, 1 Ph, 605 RPM, TEFC Motor, 11,985 CFM @ 0" S.P.)
Americraft Model #836-3/4-3-TEFC (Size 36", 3/4 HP, 230/460V, 3 Ph, 605 RPM, TEFC Motor, 11,985 CFM @ 0" S.P.)
Americraft Model #836-1-1-TEFC (Size 36", 1 HP, 115/230V, 1 Ph, 665 RPM, TEFC Motor, 13,174 CFM @ 0" S.P.)
Americraft Model #836-1-3-TEFC (Size 36", 1 HP, 230/460V, 3 Ph, 665 RPM, TEFC Motor, 13,174 CFM @ 0" S.P.)
Americraft Model #836-1-1/2-1-TEFC (Size 36", 1-1/2 HP, 115/230V, 1 Ph, 720 RPM, TEFC Motor, 13,660 CFM @ 0" S.P.)
Americraft Model #836-2-1-TEFC (Size 36", 2 HP, 115/230V, 1 Ph, 870 RPM, TEFC Motor, 16,554 CFM @ 0" S.P.)
Americraft Model #836-1-1/2-3-TEFC (Size 36", 1-1/2 HP, 230/460V, 3 Ph, 720 RPM, TEFC Motor, 13,660 CFM @ 0" S.P.)
Americraft Model #836-2-3-TEFC (Size 36", 2 HP, 230/460V, 3 Ph, 870 RPM, TEFC Motor, 16,554 CFM @ 0" S.P.)
Americraft Model #842-1/3-1-TEFC (Size 42", 1/3 HP, 115V, 1 Ph, 335 RPM, TEFC Motor, 10,614 CFM @ 0" S.P.)
Americraft Model #842-1/3-3-TEFC (Size 42", 1/3 HP, 230/460V, 3 Ph, 335 RPM, TEFC Motor, 10,614 CFM @ 0" S.P.)
Americraft Model #842-1/2-1-TEFC (Size 42", 1/2 HP, 115V, 1 Ph, 390 RPM, TEFC Motor, 12,343 CFM @ 0" S.P.)
Americraft Model #842-1/2-3-TEFC (Size 42", 1/2 HP, 230/460V, 3 Ph, 390 RPM, TEFC Motor, 12,343 CFM @ 0" S.P.)
Americraft Model #842-3/4-1-TEFC (Size 42", 3/4 HP, 115/230V, 1 Ph, 435 RPM, TEFC Motor, 14,040 CFM @ 0" S.P.)
Americraft Model #842-3/4-3-TEFC (Size 42", 3/4 HP, 230/460V, 3 Ph, 435 RPM, TEFC Motor, 14,040 CFM @ 0" S.P.)
Americraft Model #842-1-1-TEFC (Size 42", 1 HP, 115/230V, 1 Ph, 490 RPM, TEFC Motor, 15,429 CFM @ 0" S.P.)
Americraft Model #842-1-3-TEFC (Size 42", 1 HP, 230/460V, 3 Ph, 490 RPM, TEFC Motor, 15,429 CFM @ 0" S.P.)
Americraft Model #842-1-1/2-1-TEFC (Size 42", 1-1/2 HP, 115/230V, 1 Ph, 550 RPM, TEFC Motor, 17,420 CFM @ 0" S.P.)
Americraft Model #842-1-1/2-3-TEFC (Size 42", 1-1/2 HP, 230/460V, 3 Ph, 550 RPM, TEFC Motor, 17,420 CFM @ 0" S.P.)
Americraft Model #842-2-1-TEFC (Size 42", 2 HP, 115/230V, 1 Ph, 725 RPM, TEFC Motor, 20,653 CFM @ 0" S.P.)
Americraft Model #842-2-3-TEFC (Size 42", 2 HP, 230/460V, 3 Ph, 725 RPM, TEFC Motor, 20,653 CFM @ 0" S.P.)
Americraft Model #842-3-3-TEFC (Size 42", 3 HP, 230/460V, 3 Ph, 830 RPM, TEFC Motor, 23,645 CFM @ 0" S.P.)
Americraft Model #848-1/2-1-TEFC (Size 48", 1/2 HP, 115V, 1 Ph, 330 RPM, TEFC Motor, 15,230 CFM @ 0" S.P.)
Americraft Model #848-1/2-3-TEFC (Size 48", 1/2 HP, 230/460V, 3 Ph, 330 RPM, TEFC Motor, 15,230 CFM @ 0" S.P.)
Americraft Model #848-3/4-1-TEFC (Size 48", 3/4 HP, 115/230V, 1 Ph, 370 RPM, TEFC Motor, 17,339 CFM @ 0" S.P.)
Americraft Model #848-3/4-3-TEFC (Size 48", 3/4 HP, 230/460V, 3 Ph, 370 RPM, TEFC Motor, 17,339 CFM @ 0" S.P.)
Americraft Model #848-1-1-TEFC (Size 48", 1 HP, 115/230V, 1 Ph, 410 RPM, TEFC Motor, 19,188 CFM @ 0" S.P.)
Americraft Model #848-1-3-TEFC (Size 48", 1 HP, 230/460V, 3 Ph, 410 RPM, TEFC Motor, 19,188 CFM @ 0" S.P.)
Americraft Model #848-1-1/2-1-TEFC (Size 48", 1 HP, 115/230V, 1 Ph, 465 RPM, TEFC Motor, 21,731 CFM @ 0" S.P.)
Americraft Model #848-1-1/2-3-TEFC (Size 48", 1-1/2 HP, 230/460V, 3 Ph, 465 RPM, TEFC Motor, 21,731 CFM @ 0" S.P.)
Americraft Model #848-2-1-TEFC (Size 48", 2 HP, 115/230V, 1 Ph, 520 RPM, TEFC Motor, 24,274 CFM @ 0" S.P.)
Americraft Model #848-2-3-TEFC (Size 48", 2 HP, 230/460V, 3 Ph, 520 RPM, TEFC Motor, 24,274 CFM @ 0" S.P.)
Americraft Model #848-3-3-TEFC (Size 48", 3 HP, 230/460V, 3 Ph, 680 RPM, TEFC Motor, 28,150 CFM @ 0" S.P.)
Americraft Model #848-5-3-TEFC (Size 48", 5 HP, 230/460V, 3 Ph, 800 RPM, TEFC Motor, 33,160 CFM @ 0" S.P.)
Americraft Model #854-3/4-1-TEFC (Size 54", 3/4 HP, 115/230V, 1 Ph, 350 RPM, TEFC Motor, 19,700 CFM @ 0" S.P.)
Americraft Model #854-3/4-3-TEFC (Size 54", 3/4 HP, 230/460V, 3 Ph, 350 RPM, TEFC Motor, 19,700 CFM @ 0" S.P.)
Americraft Model #854-1-1-TEFC (Size 54", 1 HP, 115/230V, 1 Ph, 410 RPM, TEFC Motor, 23,130 CFM @ 0" S.P.)
Americraft Model #854-1-3-TEFC (Size 54", 1 HP, 230/460V, 3 Ph, 410 RPM, TEFC Motor, 23,130 CFM @ 0" S.P.)
Americraft Model #854-1-1/2-1-TEFC (Size 54", 1-1/2 HP, 115/230V, 1 Ph, 450 RPM, TEFC Motor, 25,400 CFM @ 0" S.P.)
Americraft Model #854-1-1/2-3-TEFC (Size 54", 1-1/2 HP, 230/460V, 3 Ph, 450 RPM, TEFC Motor, 25,400 CFM @ 0" S.P.)
Americraft Model #854-2-1-TEFC (Size 54", 2 HP, 115/230V, 1 Ph, 480 RPM, TEFC Motor, 27,200 CFM @ 0" S.P.)
Americraft Model #854-2-3-TEFC (Size 54", 2 HP, 230/460V, 3 Ph, 480 RPM, TEFC Motor, 27,200 CFM @ 0" S.P.)
Americraft Model #854-3-3-TEFC (Size 54", 3 HP, 230/460V, 3 Ph, 550 RPM, TEFC Motor, 31,213 CFM @ 0" S.P.)
Americraft Model #854-5-3-TEFC (Size 54", 5 HP, 230/460V, 3 Ph, 660 RPM, TEFC Motor, 37,458 CFM @ 0" S.P.)
Americraft Model #860-1-1-TEFC (Size 60", 1 HP, 115/230V, 1 Ph, 280 RPM, TEFC Motor, 23,090 CFM @ 0" S.P.)
Americraft Model #860-1-3-TEFC (Size 60", 1 HP, 230/460V, 3 Ph, 280 RPM, TEFC Motor, 23,090 CFM @ 0" S.P.)
Americraft Model #860-1-1/2-1-TEFC (Size 60", 1-1/2 HP, 115/230V, 1 Ph, 340 RPM, TEFC Motor, 28,068 CFM @ 0" S.P.)
Americraft Model #860-1-1/2-3-TEFC (Size 60", 1-1/2 HP, 230/460V, 3 Ph, 340 RPM, TEFC Motor, 28,068 CFM @ 0" S.P.)
Americraft Model #860-2-1-TEFC (Size 60", 2 HP, 115/230V, 1 Ph, 390 RPM, TEFC Motor, 32,200 CFM @ 0" S.P.)
Americraft Model #860-2-3-TEFC (Size 60", 2 HP, 230/460V, 3 Ph, 390 RPM, TEFC Motor, 32,200 CFM @ 0" S.P.)
Americraft Model #860-3-3-TEFC (Size 60", 3 HP, 230/460V, 3 Ph, 450 RPM, TEFC Motor, 37,183 CFM @ 0" S.P.)
Americraft Model #860-5-3-TEFC (Size 60", 5 HP, 230/460V, 3 Ph, 540 RPM, TEFC Motor, 44,600 CFM @ 0" S.P.)
Americraft Model #872-3-3-TEFC (Size 72", 3 HP, 230/460V, 3 Ph, 310 RPM, TEFC Motor, 41,666 CFM @ 0" S.P.)
Americraft Model #872-5-3-TEFC (Size 72", 5 HP, 230/460V, 3 Ph, 372 RPM, TEFC Motor, 50,026 CFM @ 0" S.P.)
Americraft Model #872-7-1/2-3-TEFC (Size 72", 7-1/2 HP, 230/460V, 3 Ph, 429 RPM, TEFC Motor, 57,686 CFM @ 0" S.P.)
Americraft Model #872-10-3-TEFC (Size 72", 10 HP, 230/460V, 3 Ph, 474 RPM, TEFC Motor, 63,721 CFM @ 0" S.P.)
Americraft Model #872-15-3-TEFC (Size 72", 15 HP, 230/460V, 3 Ph, 544 RPM, TEFC Motor, 73,203 CFM @ 0" S.P.)

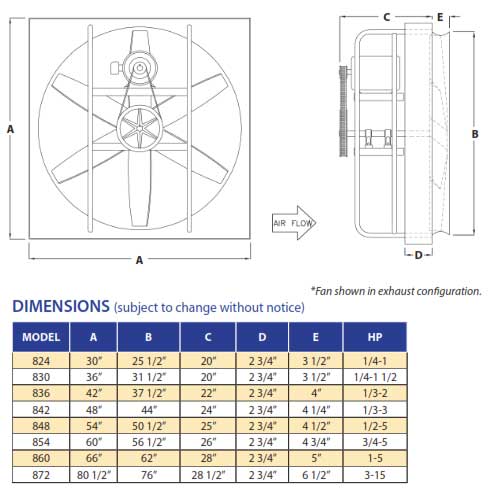

Printable Cut Sheet and Detailed Performance Chart (389 kb)
