Model STXD Centrifugal Roof or Sidewall Upblast Exhaust Fan

Product Bulletin (429 kb)

Accessories (3.58 Mb)

Installation Operation and Maintenance Manual (119 kb)

Options:

Price: $707.60

SKU: STXD06CJH1AS-115V

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

APPLICATION

Isolation of the motor from the air stream and the high velocity vertical (roof) or horizontal (wall) air discharge make the Model STXD ideally suited for the removal of dirty, contaminated and/or high temperature air from processes and buildings. Typical applications include restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

The non-overloading wheel with its higher static pressure capability makes this unit suitable for either ducted or non-ducted applications. Its roof or wall mounting permit's location near the area to be ventilated, allowing short duct runs and more efficient operation. Direct drive units use smaller diameter wheels, resulting in low sound levels and quiet operation. They have no belts or fan bearings to maintain or adjust and consequently require very little maintenance.

Models 6 thru 8 Not Suitable for Restaurant Grease Extraction Applications

Model STXD	Motor HP	RPM	Sones @ 1/8" S.P.	CFM at Static Pressure						Model Number
Model STXD	Motor HP	RPM	Sones @ 1/8" S.P.	0"	1/8"	1/4"	3/8"	1/2"	5/8"	Model Number
6	1/10	1650	7.1	225	208	191	172	149	115	STXD06CJH1AS
6	1/10	1650	7.2	308	285	259	231	194	133	STXD06JH1AS
7	1/10	1650	7.1	437	394	345	287	223	145	STXD07JH1AS
8	1/25	1150	6.0	612	531	427	-	-	-	STXD08HM1AS
8	1/4	1750	10.9	935	881	832	773	712	636	STXD08MH1AS
10	1/4	1150	7.7	979	886	777	657	452	-	STXD10RHULMM1AS
10	1/3	1700	13.8	1445	1385	1319	1248	1175	1100	STXD10RHULPH1AS
12	1/4	1150	8.5	1284	1155	1031	883	701	-	STXD12RHULMM1AS
12	1/2	1700	15.3	1918	1831	1751	1665	1574	1485	STXD12RHULQH1AS
14	1/4	1100	12.4	2148	1998	1830	1651	1411	1077	STXD14RHULMM1AS
15	1/2	1150	14.0	2643	2501	2384	2215	2048	1887	STXD15RHULQM1AS
16	1/2	1150	14.4	3187	3043	2904	2749	2577	2383	STXD16RHULQM1AS

Speed (RPM) shown is nominal. Performance is based on actual speed test.
Performance certified is for installation type A-free inlet, free outlet.
Performance ratings do not include the effects of bird screen in the air stream.

The sound ratings shown are the loudness values in the fan sones @ 5' (1.5m) in an hemispherical fee field calculated per AMCA Standard 301. Installation Type A: free inlet hemispherical sone levels.

NOTE: This Product Is Not Available to Ship to Canada

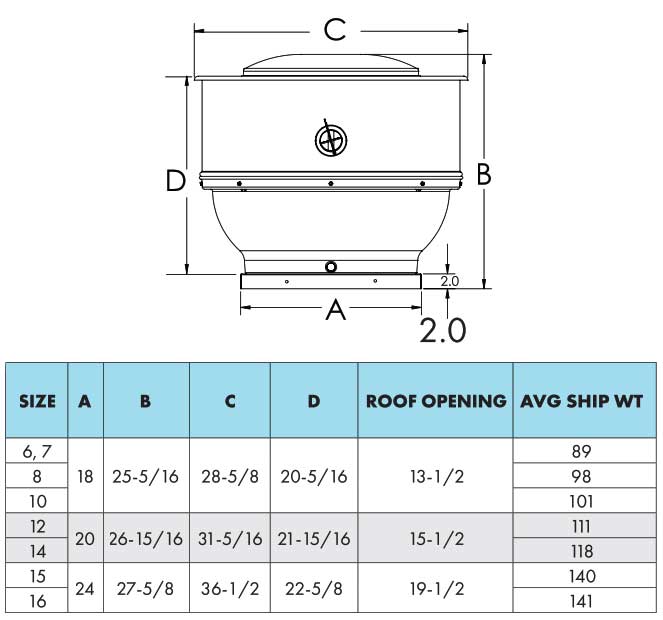

CONSTRUCTION

Housing

• Heavy-gauge aluminum for extra strength with pre-punched mounting holes.

• Stainless steel exterior fasteners.

• Enclosed, ventilated motor compartment isolates motor from exhaust air.

• Neoprene isolators for reduction of vibration and sound.

• The motor compartment housing easily removes for complete maintenance access.

• Water-tight conduit tube for easy electrical connection.

the breather tube.

• Mounted disconnect is included on standard models.

Centrifugal Wheel
