Model ADD - Direct Drive Wall Fans
Designed for heavy heavy duty commercial and industrial applications.
- Factories, Warehouses, Gymnasiums, Underground parking garages, etc.
--------------------------------------------------------------------------------------------------------
These fans are typically used for high volume, high static pressure applications. The series ADD is designed and constructed for efficient & economical operations and is direct drive, therefore requiring little or no maintenance. Heavy duty airfoil cast aluminum blades are standard to ADD series fans providing maximum performance at low sounds. This fan is used for exhaust applications. Please consult Airdistributor (317-531-1638) for supply applications.
OPTIONAL - Reversing fans available on 30"& 36" models only. (Comes with Reversible Blades and Reversing Switch)
NOTE: When Picking the Cabinet, Back Guard and Shutter Option with a Reversible Fan, It Comes Fully Assembled Complete with Cabinet, Back Guard, Belimo Actuator Operated Powered Shutter with End Switch, Reversing Switch and Fan Disconnect Switch
|
|
||||
Back View |
Note: Cabinet, Back Guard and Shutter Option (Dimensions Shown at Bottom of Page) |
|
|
|
These fans can be combined with explosion proof motors for use in hazardous locations. |
||
When ordering the reversing fan with cabinet option it comes with motorized Belimo actuator and reversing switch. |
||
These fans are made to order and cannot be cancelled or returned. |

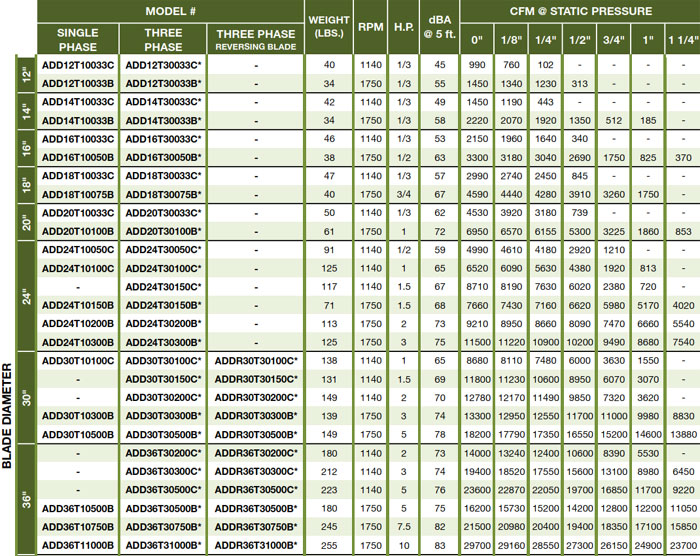

Fan blades tested in accordance with AMCA standard 210, figure 12. dBA ratings shown are measured at 0" static pressure, and should be used as guideline only.
*Three phase fans come standard as 230/460V. 208V and 575V are available
Cabinet Back Guard and Shutter Option Dimensions
|
Industrial Wall Exhaust Fan/Supply Fan Models ADD12T10033C, ADD12T30033C,
ADD12T10033B, ADD12T30033B, ADD14T1003C, ADD14T30033C, ADD14T10033B,
ADD14T30033B, ADD16T10033C, ADD16T30033C, ADD16T10050B, ADD16T30050B,
ADD18T10033C, ADD18T30033C, ADD18T10075B, ADD18T30075B, ADD20T10033C, ADD20T30033C, ADD20T10100B, ADD20T30100B, ADD24T10050C, ADD24T30050C, ADD24T10100C, ADD24T30100, ADD24T30150C, ADD24T10150B, ADD24T30150B, ADD24T10200B, ADD24T30200B, ADD24T10300B, ADD24T30300B, ADD30T10100C, ADD30T30100C, ADDR30T30100C, ADD30T30150C, ADDR30T30150C, ADD30T30200C, ADDR30T30200C, ADD30T10300B, ADD30T30300B, ADDR30T30300B, ADD30T10500B, ADD30T30500B, ADDR30T30500B, ADD36T30200C, ADDR36T30200C, ADD36T30300C, ADDR36T30300C, ADD36T30500C, ADDR36T30500C, ADD36T10500B, ADD36T30500B, ADDR36T30500B, ADD36T10750B, ADD36T30750B, ADDR36T30750B, ADD36T11000B, ADD36T31000B, ADDR36T31000B |
