Model SQD Square Inline Direct Drive Centrifugal Duct Fan

Product Bulletin and Detailed Performance Chart (550 kb)

Installation Operation and Maintenance Manual (489 kb)

Options:

Price: $579.50

SKU: SQD601AS-115V

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

APPLICATION

Model SQD Square inline duct mounted fans are available in sizes 6 through 15, moving up to 2,800 CFM, with static pressure capabilities to 1".SQD units are the perfect selection for clean air applications where space is a leading consideration. The compact housing with removable access doors and side discharge capability can be mounted in any orientation. AMCA licensed performance and UL listing assure that you have made a reliable selection.

CONSTRUCTION

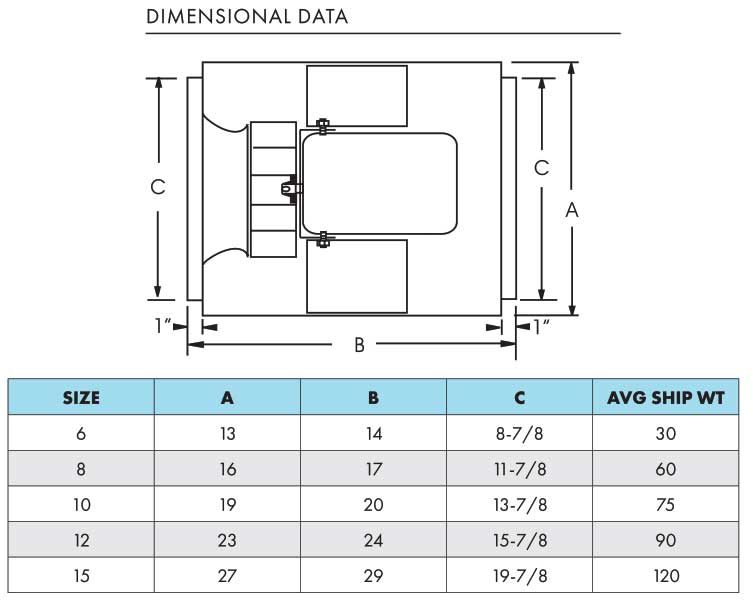

Housing

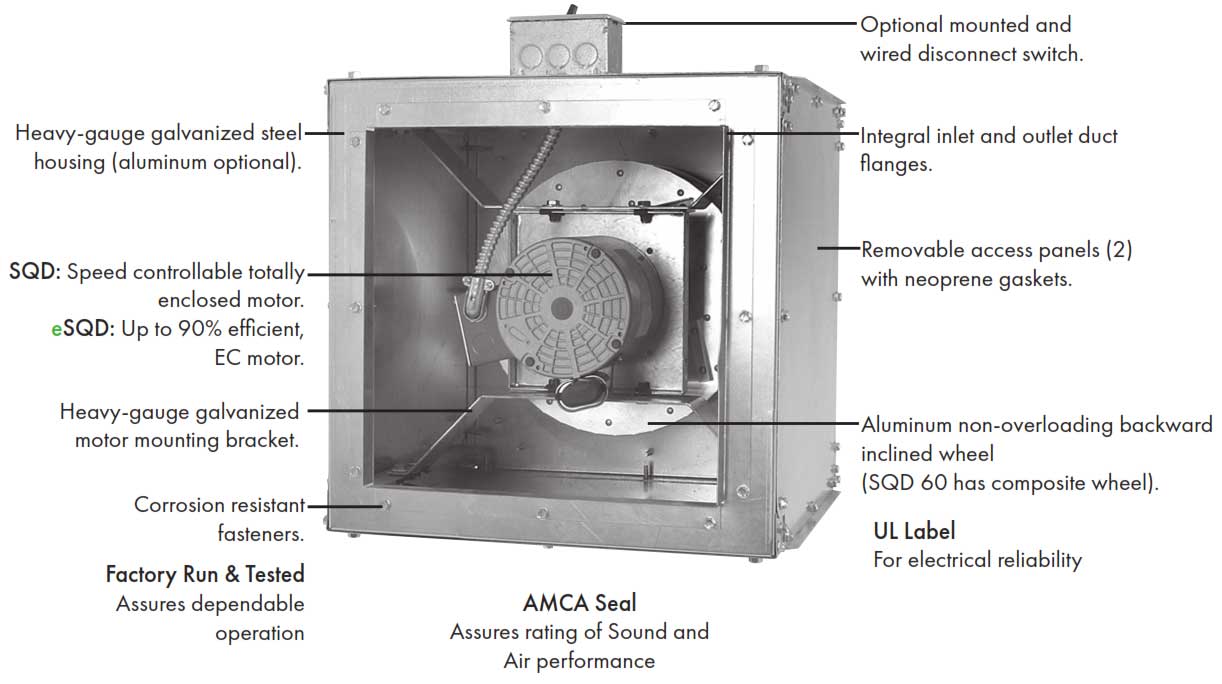

- Heavy-gauge galvanized steel for extra strength.
- Integral inlet and outlet duct collars.
- Universal mounting - horizontal, vertical or any angle.
- Easy access for service with removable side panels, without disconnecting duct.

Centrifugal Wheel
- All aluminum backward inclined wheel.
- Non overloading for safe operation in ducted systems.
- Statically and dynamically balanced for smooth operation.
- SQD 06 has composite wheel.

Motors
- Single speed totally enclosed are standard.
- All motors are rated for continuous duty.
- Standard motors are permanently sealed ball bearing type.
- SQD06 has an external rotor motor.

* True motor speed - other speeds based on speed control use
Performance certified is for installation Type B-free inlet, ducted outlet.
Power ratings (BHP) do not include transmission losses.
Performance ratings do not include the effects of appurtenances (accessories).
The sound ratings shown are loudness values in fan sones at 5 feet (1.5M) in a hemispherical free field calculated per AMCA Standard 301. Installation Type A: free inlet hemispherical sone levels.

Use 5 Amp Speed Control for motors 1/3 Hp and smaller
Use 10 Amp Speed Control for motors 1/2.

Models SQD601AS, SQD8251AS, SQD8251CS, SQD10251AS, SQD10251CS, SQD10501AS, SQD10501CS, SQD12251AS, SQD12251CS, SQD12501AS, SQD12501CS, SQD15501AS, SQD15501CS
