J&D Manufacturing brand Poly Chiller - 7 Models (Variable or Single Speed/14,300 CFM High)
 E-mail this product to a friend
   The Poly Chiller
J&D Manufacturing’s specialized team of ventilation engineers have created the MOST efficient venturi in the world ever designed for a recirculation fan. The one piece polyethylene housing is formed into a unique shape that actually helps draw The Poly Chiller™ air out of the venturi, throwing air further and reducing the load on the motor and blade by up to 15%. This allows us to increase the pitch and performance without overloading the motor. The smooth shape of the venturi is extremely easy to clean with no corners for bacteria or dirt to build–up in. The motor and blade are supported by a heavy duty mount which is directly attached to the multi adjustment bracket. This means the poly housing is not part of the support structure avoiding venturi distortion like other poly housing fans. Our bracket allows you to tilt and lock the fan angle on the sides along with the ceiling multi–positioning bracket. The Poly Chiller comes standard with a unique OSHA guard which is designed to create less restriction and is spaced wide enough to resist dirt built–up.

Gold medal performance in air movement, efficiency usage, versatility, corrosion resistant, safety and easy to clean. Once again J&D Manufacturing has set a new standard and we are blowing the competition away!

When it comes to transferring electrical energy efficiently into air energy for cooling, air recirculation or air movement, J&D Manufacturing is the world leader.

J&D Manufacturing re-circulation fans when applied properly can be used in the following applications:
* Air de-stratification can help reduce heating and cooling bills by up to 25%
* Air exchange when placed in a wall opening or in open sidewall buildings
* Consistent air temperature throughout a room or building
* Heat stress relief indoors and outdoors for young and old
* Surface drying (including animal bedding)
* People and animal cooling
* Machine/compressor cooling
* High velocity air cooling
* Insect control
* Air curtains

    FEATURES
  • GOLD MEDAL PERFORMANCE of 14,300 CCFM with 1/2 hp motor, 23.8 CCFM per WATT, creates an air pattern that is unequaled in today’s market
  • Three winged galvanized blade
  • Fan and guards come completely assembled.
  • OSHA approved guard for installations below and above 7 feet
  • One piece polyethylene housing with UV inhibitors, no rust, easy to clean with no corners for bacteria or dirt to build–up in.
  • Heavy duty powder coated, corrosion resistant, multi–position support bracket, motor mount and guard.
  • Totally enclosed, maintenance free, direct drive high efficiency motors have completely sealed ball bearings, UL and ULC certification, built in automatic thermal overload protection, covered by a Full Two Year Warranty.

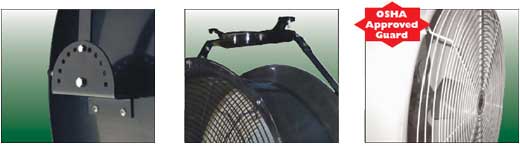

     Multi-postion Side Mount                Multi-position Top Bracket              OSHA approved guard for
                                                                                                                  Installation above & below 7'


       Black Model

Printable Manual (122.0 kb)


Part# Size HP Volt Amps HZ Phs Spd

CCFM

CFM/Watt

RPM

 Drive Blade Cord Color
VPRF24 24" 1/2 115/230 4.8/2.4 60/50 1 S/Var 6,920 15.5 1,730 DD 3-Alum No Black or White
VPRF24-C115 24" 1/2 115 4.8 60/50 1 S/Var 6,920 15.5 1,730 DD 3-Alum 10' Black or White
VPRF24-C230 24" 1/2 230 2.4 60/50 1 S/Var 6,920 15.5 1,730 DD 3-Alum 10' Black or White
VPRF36 36" 1/2 115/230 7.0/3.5 60 1 1 14,300 23.8 800 DD 3-Galv No Black or White
VPRF363 36" 1/2 230/460 3.0/1.5 60/50 3 1 14,300 23.8 800 DD 3-Galv No Black or White
VPRF36-C115 36" 1/2 115 7.0 60/50 1 1 14,300 23.8 800 DD 3-Galv 10' Black or White
VPRF36-C230 36" 1/2 230 3.5 60 1 1 14,300 23.8 800 DD 3-Galv 10' Black or White
 DD - Direct Drive


Options:

Quantity:


MSC4-C - Manual Variable Speed Control w/Cord @ $162.90
MTC4C-C - Automatic Temperature Adjusting Variable Speed Control w/Cord @ $238.90
VRSBRD36B - Wall or Post Bracket for 24" or 36" Poly Chiller Air Circulator @ $49.70
VRSBRD36C - 4-1/2" Column Mount Bracket for 24" or 36" Poly Chiller Air Circulator @ $49.70

Model #SS36S6 - 6-Way Stainless Steel Misting Cross w/6' Hose for 24" & 36" Dia. Fans
