TXD Direct Drive Upblast Roof/Sidewall Exhaust Fan Restaurant & General Applic. CFM Range: 253-3,443
 E-mail this product to a friend
|
APPLICATION
Isolation of the motor from the air stream and the high velocity vertical (roof)
or horizontal (wall) air discharge make the Model TXD ideally suited for
the removal of dirty, contaminated and/or high temperature air from processes
and buildings. Typical applications include restaurant hoods and similar
kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood
exhaust and chemical process exhaust.
The nonoverloading wheel with its higher static pressure capability makes
this unit suitable for either ducted or nonducted applications. Its roof or wall
mounting permits location near the area to be ventilated, allowing short duct
runs and more efficient operation. Direct drive units use smaller diameter
wheels, resulting in low sound levels and quiet operation. They have no belts
or fan bearings to maintain or adjust and consequently require very little maintenance. |
|
CONSTRUCTION
Housing
• Heavy-gauge aluminum housing and curb cap for strength and rigidity.
• Stainless steel exterior fasteners.
• Enclosed, ventilated motor compartment isolates motor from exhaust air.
• Neoprene isolators for reduction of vibration and sound.
• The motor compartment housing easily removes for complete maintenance access.
• Water-tight conduit tube for easy electrical connection without having to wire through
the breather tube.
• Mounted disconnect is included on standard models.
Centrifugal Wheel
• Nonoverloading backward inclined for safe operation in ducted systems.
• Wheels constructed of noncorrosive aluminum.
• Statically and dynamically balanced for smooth operation.
Speed Controllable Motors
• Standard motors are single speed, speed controllable and drip-proof.
• All motors are rated for continuous duty.
• Disconnect is standard with single speed drip-proof motors.
• Motors ship mounted as standard.
ACCESSORIES
Solid State Speed Control:
Control is matched to the motor and blower wheel to allow
continuous reduction in performance allowing adjustments of
airflow for system balancing. CFM is reduced in direct proportion
to motor speed reduction. Speed control is only available
for 115 volt single phase. Exhauster performance can be controlled
from the ventilated area. |
|

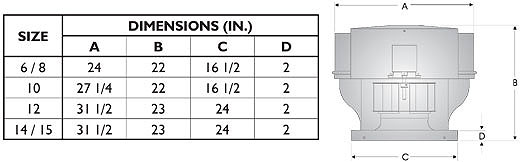

Model Number |
Wheel Dia. |
H.P. |
|
Volts |
RPM |
Ship
Wt. (lbs) |
0" S.P. |
1/8" S.P. |
1/4" S.P. |
3/8" S.P. |
1/2" S.P. |
5/8" S.P. |
|
CFM |
CFM |
CFM |
CFM |
CFM |
CFM |
|
TXD06JH1AS |
6 |
1/10 |
7.7 |
*** |
1795 |
76 |
410 |
370 |
328 |
276 |
203 |
-- |
|
TXD08MM1AS |
8 |
1/4 |
6.2 |
*** |
1130 |
76 |
886 |
783 |
644 |
441 |
-- |
-- |
|
TXD08MH1AS |
1/4 |
13.8 |
*** |
1740 |
76 |
1364 |
1300 |
1232 |
1158 |
1072 |
960 |
|
TXD10RHULMH1AS |
10 |
1/4 |
14.7 |
*** |
1650 |
105 |
1527 |
1460 |
1398 |
1325 |
1236 |
1129 |
|
TXD12RHULMH1AS |
12 |
1/4 |
9.6 |
*** |
1140 |
115 |
1616 |
1487 |
1338 |
1161 |
983 |
760 |
|
TXD12RHULQH1AS |
1/2 |
21.0 |
*** |
1730 |
115 |
2453 |
2364 |
2281 |
2196 |
2097 |
1985 |
|
TXD14RHULMM1AS |
14 |
1/4 |
10.4 |
*** |
1130 |
120 |
2060 |
1939 |
1798 |
1638 |
1439 |
1177 |
|
TXD15RHULQM1AS |
15 |
1/2 |
13.2 |
*** |
1155 |
120 |
2786 |
2653 |
2491 |
2313 |
2104 |
1863 |
|
TXD15RHULRH1AS |
3/4 |
22 |
115 |
1650 |
120 |
3044 |
2964 |
2887 |
2811 |
2736 |
2659 |
|
* Comes with a 5 Year Fan Warranty and a 1 Year Motor Warranty.
** Models with 6" and 8" wheel diameters are not suitable for restaurant applications. *** Available in 115V or 230V - Speed controller is available for 115V only.
|
|
|
|
 |
| TXD06JH1AS (Size 6, 1/10 HP, 410 CFM High @ 0" S.P., Single/Variable Speed, 1550 RPM) |
|
SKU:TXD06JH1AS
|
|
Weight:70.00
|
| Price: $464.99 |
|
|
 |
| TXD08MM1AS (Size 8, 1/4 HP, 886 CFM High @ 0" S.P., Single/Variable Speed, 1075 RPM) |
|
SKU:TXD08MM1AS
|
|
Weight:70.00
|
| Price: $549.98 |
|
|
 |
| TXD08MH1AS (Size 8, 1/4 HP, 1364 CFM High @ 0" S.P., Single/Variable Speed, 1625 RPM) |
|
SKU:TXD08MH1AS
|
|
Weight:70.00
|
| Price: $553.24 |
|
|
 |
| TXD10RHULMH1AS (Size 10, 1/4 HP, 1527 CFM High @ 0" S.P., Single/Variable Speed, 1625 RPM) |
|
SKU:TXD10RHULMH1AS
|
|
Weight:73.00
|
| Price: $698.79 |
|
|
 |
| TXD12RHULMH1AS (Size 12, 1/4 HP, 1616 CFM High @ 0" S.P., Single/Variable Speed, 1075 RPM) |
|
SKU:TXD12RHULMH1AS
|
|
Weight:115.00
|
| Price: $736.85 |
|
|
 |
| TXD12RHULQH1AS (Size 12, 1/2 HP, 2453 CFM High @ 0" S.P., Single/Variable Speed, 1625 RPM) |
|
SKU:TXD12RHULQH1AS
|
|
Weight:115.00
|
| Price: $764.59 |
|
|
 |
| TXD14RHULMM1AS (Size 14, 1/4 HP, 2060 CFM High @ 0" S.P.,Single/Variable Speed,1075 RPM) |
|
SKU:TXD14RHULMM1AS
|
|
Weight:120.00
|
| Price: $767.86 |
|
|
 |
| TXD15RHULQM1AS (Size 15, 1/2 HP, 2786 CFM High @ 0" S.P., Single/Variable Speed, 1140 RPM) |
|
SKU:TXD15RHULQM1AS
|
|
Weight:120.00
|
| Price: $790.70 |
|
|
 |
| TXD15RHULRH1AS (Size 15, 3/4 HP, 3044 CFM High @ 0" S.P., 115V Single/Variable Speed, 1750 RPM) |
|
SKU:TXD15RHULRH1AS
|
|
Weight:120.00
|
| Price: $828.24 |
|
|
|
