(Single Speed) Belt Drive Wall Exhaust or Intake Fan CFM Range: 5,331 - 40,855 (Sizes 24" thru 60")


(Single Speed) Belt Drive Wall Exhaust or Intake Fan CFM Range: 5,331 - 40,855 (Sizes 24" thru 60")

(Single Speed) Belt Drive Wall Exhaust or Intake Fan CFM Range: 5,331 - 40,855 (Sizes 24" thru 60")
Previous  Up  Next
E-mail this product to a friend E-mail this product to a friend




APPLICATION
Model LCE (exhaust) is a high capacity belt driven propeller fan. Its primary application is the exhaust of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry and greenhouses. Belt driven fans provide large volumes of air at low fan speeds and low noise levels and afford quick, easy performance adjustments. When suspended from the ceiling, thus keeping floor spaces open, model LC can be installed to direct large volumes of air downward toward work centers improving employee comfort and productivity.


CONSTRUCTION:

Panel Assembly
• Heavy-gauge galvanized steel.
• All welded motor & drive support frame assembly.
• Prepunched mounting holes.
Propeller
• Die formed galvanized steel blades.
• Epoxy coated hub keyed to fan shaft.
• Statically and dynamically balanced.




Drives
• Sized for minimum 150% of drive horsepower.
• Single belt adjustable pitch sheaves through 3 HP.
• Nonstatic v-belts.

Bearings
• Designed for minimum 200,000 hour life.
• Bearings are sealed, prelubricated with relube fittings.
Motors
• Open drip-proof construction is standard.
• All motors mounted and factory run tested.

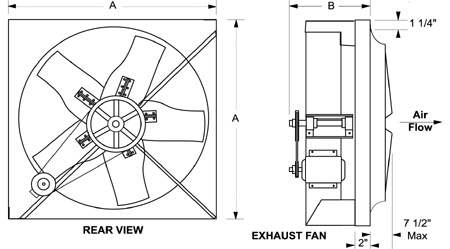

Dimensional Data
Model LC A B Wall Opening Required
24 30" 15" 31-1/2" Sq.
30 36" 15" 37-1/2" Sq.
36 42" 15" 43-1/2" Sq.
42 48" 16" 49-1/2" Sq.
48 54" 16" 55-1/2" Sq.
54 60" 20" 61-1/2" Sq.
60 66" 20" 67-1/2" Sq.


Printable Cut Sheet (1.93 Mb)
Accessories (4.58 Mb)
Installation & Operation Manual (1.07 Mb)

115V

1 Phase/60 Hz

Model Number

208-230/460V

3 Phase/60 Hz

Model Number

Blade Dia.
H.P.
SONES @ 0" SP
RPM

Approx.

Wt. (lbs)

0" S.P.
1/10" S.P.
1/8" S.P.
1/4" S.P.
3/8" S.P.
1/2" S.P.
CFM
CFM
CFM
CFM
CFM
CFM
LCE24MHIS LCE24MH3S 24 1/4 10.2 600 90 5,331 4,652 4,431 2,269 - -
LCE24PHIS LCE24PH3S 24 1/3 12.1 660 90 5,864 5,268 5,086 3,702 - -
LCE24QHIS LCE24QH3S 24 1/2 15.7 760 90 6,753 6,254 6,112 5,212 - -
LCE24RHIS LCE24RH3S 24 3/4 19.8 875 90 7,775 7,352 7,237 6,562 5,600 -
LCE24SHIS LCE24SH3S 24 1 22.0 950 90 8,441 8,057 7,953 7,369 6,625 5,559
LCE24THIS LCE24TH3S 24 1 1/2 28.00 1100 90 9,774 9,447 9,361 8,894 8,347 7,688
LCE30MHIS LCE30MH3S 30 1/4 9.0 450 100 7,365 6,062 5,572 - - -
LCE30PHIS LCE30PH3S 30 1/3 10.5 495 100 8,101 6,954 6,603 - - -
LCE30QHIS LCE30QH3S 30 1/2 13.3 565 100 9,247 8,271 7,995 6,052 - -
LCE30RHIS LCE30RH3S 30 3/4 17.1 650 100 10,638 9,853 9,594 8,198 - -
LCE30SHIS LCE30SH3S 30 1 20.0 715 100 11,702 11,021 10,802 9,659 8,052 -
LCE30THIS LCE30TH3S 30 1 1/2 24.0 815 100 13,339 12,773 12,599 11,609 10,482 9,013
LCE36PHIS LCE36PH3S 36 1/3 9.7 390 105 10,755 8,745 7,976 - - -
LCE36QHIS LCE36QH3S 36 1/2 11.9 440 105 12,133 10,449 9,923 - - -
LCE36RHIS LCE36RH3S 36 3/4 15.3 505 105 13,926 12,485 12,100 9,348 - -
LCE36SHIS LCE36SH3S 36 1 18.1 555 105 15,305 14,018 13,663 11,419 - -
LCE36THIS LCE36TH3S 36 1 1/2 22.0 635 105 17,511 16,413 16,111 14,497 12,146 -
LCE36VHIS LCE36VH3S 36 2 25.0 695 105 19,165 18,176 17,907 16,499 14,594 12,363
LCE42PHIS LCE42PH3S 42 1/3 8.4 305 110 13,173 9,658 8,439 - - -
LCE42QHIS LCE42QH3S 42 1/2 9.8 345 110 14,901 12,109 11,073 - - -
LCE42RHIS LCE42RH3S 42 3/4 12.6 395 110 17,060 14,724 14,044 7,292 - -
LCE42SHIS LCE42SH3S 42 1 14.9 435 110 18,788 16,703 16,128 12,182 - -
LCE42THIS LCE42TH3S 42 1 1/2 18.8 500 110 21,596 19,833 19,339 16,470 11,827 -
LCE42VHIS LCE42VH3S 42 2 22.00 550 110 23,755 22,182 21,746 19,393 16,034 -
LCE48QHIS LCE48QH3S 48 1/2 10.0 290 125 17,979 13,841 12,199 - - -
LCE48RHIS LCE48RH3S 48 3/4 12.1 330 125 20,459 16,949 15,969 - - -
LCE48SHIS LCE48SH3S 48 1 14.3 365 125 22,629 19,504 18,659 10,868 - -
LCE48THIS LCE48TH3S 48 1 1/2 17.8 415 125 25,729 23,054 22,306 17,746 - -
LCE48VHIS LCE48VH3S 48 2 21.0 455 125 28,209 25,800 25,148 21,574 15,382 -
LCE54RHIS LCE54RH3S 54 3/4 11.0 270 240 23,384 - 17,932 - - -
LCE54SHIS LCE54SH3S 54 1 13.1 295 240 25,550 - 20,825 - - -
LCE54THIS LCE54TH3S 54 1 1/2 16.8 340 240 29,447 - 25,449 19,183 - -
LCE54VHIS LCE54VH3S 54 2 19.4 370 240 32,045 - 28,375 23,692 - -
LCE54WH3S LCE54WH3S 54 3 24.0 425 240 36,809 - 33,585 30,290 24,785 15,677
LCE60SHIS LCE60SH3S 60 1 11.5 265 285 28,491 - 22,275 - - -
LCE60THIS LCE60TH3S 60 1 1/2 14.3 300 285 32,254 - 27,023 - - -
LCE60VHIS LCE60VH3S 60 2 17.1 335 285 36,017 - 31,464 25,399 - -
LCE60WH3S LCE60WH3S 60 3 21.0 380 285 40,855 - 36,826 32,244 29,351 -

*All models 1/4 thru 1/2 H.P. motors are available in 115V or 208-230/460V.
  Tri-voltage (115-208-230V) is standard on 3/4 through 1 1/2 H.P motors.
  3 Phase 208-230/460V is available on all models.


NOTE: This Product Is Not Available to Ship to Canada and Must Ship to a Commercial Address.
