Features

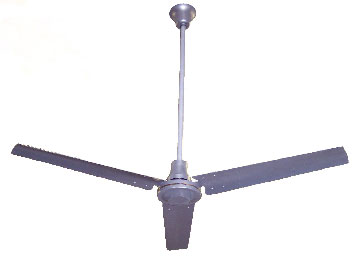

Moisture/Dust Resistant Industrial Ceiling Fans Come Completely Assembled (except blades). All metal construction. No plastic canopies or blades to burn, melt, or crack. Variable speed capacitor type, impedance protected, 18 pole "F" frame A/C motor. Cast Aluminum motor housing. Integral bi-metal Firesafewired to line voltage with automatic shutdown (135 F) and reset. Fire sensor to be mounted in the yoke cavity above and seperate from the cast aluminum motor housing. 3/4" O.D. steel down rod, drilled and clevis pinned to motor shaft. 3/8" x 7 1/4" steel J-type mounting hook with spring steel safety clip and aircraft type lock-nut to prevent spin-off or falling. Sealed Bearings. 18/3 SJT power cord with black jacket & 3 prong molded plug. 80 c, 10 amp., 120 volt rated, or wire leads. Factory installed type 304 stainless steel internal safety cable, 7" x 1/16" diameter, 480# breaking strength. Self-locking 1/4" blade bolts with PVC coated threads. 6 Year Manufacturer's Warranty       Installation Instructions.pdf(6.44mb) Printable Cut Sheet.pdf(332kb)

Model Stock Color CFM Airflow Size Description Coverage Volts Amps Down Rod S-556-277 White 27,500 Reversible 56" Wire Leads 3,800 sq. ft. 277 0.29 16" *Note: These fans are variable speed (inifinte range) and made to work with a solid state rheostat speed controller which is sold seperately. Model #HFR-5 is required to change direction of the fan from downdraft to updraft. Ceiling fan speed control models 202 208, 215 can be used with reversible ceiling fans for downdraft only or with model A-10 reversing switch mounted in a 2-gang box.The speed controls shown on this page are not designed for wet locations. They must either be mounted in a dry location or under a weatherproof box.   Custom Down Rods Custom down rod lengths are available. Pricing below reflects lengthening the down rod pole, lead wires & safety cable.   Custom Color Chart Note: There is a 3-Fan minimum when ordering custom colors. White is the standard color. Paint is a wet coat enamel. Powder coating is available on a per quote basis. There is a 12-Fan minimum when ordering custom powder coating. Powder coat colors can be viewed by clicking here.   Wet Coat Enamel Color Chart for Online Ordering   Red    Black  Brown  Green   Blue   Yellow Orange  Silver    Grey                                    Custom "Silver" Paint with 48" Custom Down Rod
