Altra-Air High Volume Low Speed Ceiling Fans (8'-24', Downflow, Up To 397,701 CFM)


 E-mail this product to a friend

Altra-Air Application
Altra-air fans blanket a very large area with constantly moving air to create an expansive comfort zone.
As a result, in hot humid weather these big ceiling fans will create an evaporative cooling effect of two to four degrees Celsius throughout.
During the heating season the Altra-Air fan technology can de-stratify uneven temperatures that can be in excess of 15 degrees Celsius from floor to ceiling. This results in significant energy savings since the heating system cycles less frequently. Hot and cold spots are also eliminated.

Altra-Air Advantage
- Five bladed High Volume Low Speed Fan
- Increased blade pitch means more air.
- Inexpensive to operate.
- Very low decibal level.
- Proven to save energy year round.
- Simply the best fan on the market.

Technical Specifications
- Fans range from 8' to 24' in diameter.
- Capable of moving nearly 400,000 CFM.
- Operates on 1 to 2 Hp.
- Variable frequency drive provides soft start & full variable speed operation.
- Creates a non-disruptive air flow.

Installation Instructions  (2.1 MB)

The Benefits of Altra-Air Fans  (56.8 KB)

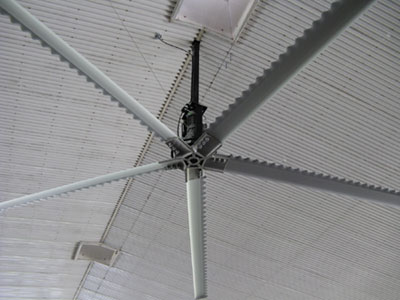

   Standard Ceiling Fan Color Shown - Custom Colors are Availble Upon Request
Product SKU Description Price Order
AD600X5002
8' Altra Air Reversible Ceiling Fan
1 HP, 154 RPM, 42,136 CFM
De-Stratification Diameter = 35'
Cooling Diameter = 17.5'
Weight without Mount = 214 lbs
 		Price: $3,790.00
Quantity:
AD600X5006
12' Altra Air Reversible Ceiling Fan
1 HP, 123 RPM, 134,152 CFM
De-Stratification Diameter = 80'
Cooling Diameter = 40'
Weight without Mount = 235 lbs
 		Price: $4,220.00
Quantity:
AD600X5010
16' Altra Air Reversible Ceiling Fan
1-1/2 HP, 73 RPM, 182,173 CFM
De-Stratification Diameter = 140'
Cooling Diameter = 70'
Weight without Mount = 251 lbs
 		Price: $4,330.00
Quantity:
AD600X5014
20' Altra Air Reversible Ceiling Fan
2 HP, 63 RPM, 330,050 CFM
De-Stratification Diameter = 200'
Cooling Diameter = 100'
Weight without Mount = 293 lbs
 		Price: $4,450.00
Quantity:
AD600X5016
24' Altra Air Reversible Ceiling Fan
2 HP, 57 RPM, 397,701 CFM
De-Stratification Diameter = 230'
Cooling Diameter = 115'
Weight without Mount = 310 lbs
 		Price: $4,575.00
Quantity:


NEMA Heavy Duty Beam Mounting Kit for All Altra-Air Ceiling Fans
NEMA 4X Fan Variable Speed Controller with Reversing Switch
