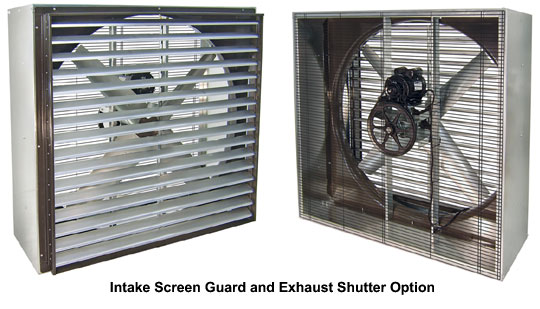

Triangle Engineering or Arkansas Model VIK (Single Speed) Belt Drive Heavy Duty Industrial Wall Exhaust Fan Single Phase or Three Phase CFM Range: 4,190-43,500 (Sizes 24" thru 60")
THE VIK SERIES
Triangle's "VIK" Series Belt Drive Heavy Duty Industrial Exhaust Fans are designed to meet the exhaust airflow needs of factories, warehouses, gymnasiums, greenhouses, etc. "VIK" Series Belt Drive Heavy Duty Industrial Exhaust Fans come standard with installed IWS shutters and VIG guards. The "VIK" Series Belt Drive Heavy Duty Industrial Exhaust Fans come with a polyester powder coated venturi to improve airflow and protect against corrosion as well as a heavy gauge galvanized housing for corrosion resistance. :VIK" models up to 1-1/2 HP with ODP and TEFC motors come equipped with Triangle's exclusive "X-Wing" Belt Tensioner which reduces maintenance and extends belt and motor life.
◆ Bronze powder coated rolled inlet venturi for efficient airflow.
◆ Rugged heavy gauge galvanized housing.
◆ Available in sizes from 24" to 60" blade diameter.
◆ Available with ODP (Open Drip Proof) and TE (Totally Enclosed) motors |
|
Trangle's Exclusive
"X-Wing" Belt Tensioner
Incorporates the motor and bearing mounts along with a supper efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816.
Fans with motors larger than 1-1/2 H.p have the standard stationary motor and bearing mounts.
|
|
 |
 Printable Manual (3.22 mb)Installation Manual (296 kb) |
|

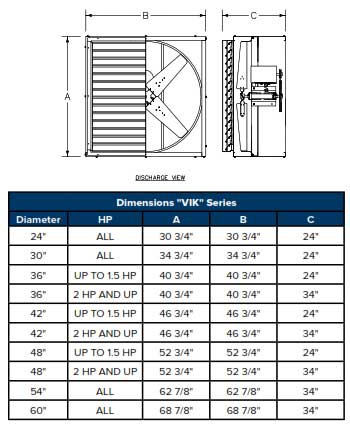

Diameter |
HP |
CFM 0.0 S.P. |
CFM .125 S.P. |
CFM .25 S.P. |
CFM @ .5” S.P |
Approximate Weight (lbs) |
1 - Phase |
3 - Phase |
||
|
Open Drip Proof Motor 115/230V |
Totally Enclosed Motor 115/230V |
Open Drip Proof Motor 230/460V |
Totally Enclosed Motor 230/460V |
|||||||
|
24” |
1/3 |
4,190 |
3,250 |
1,950 |
---- |
160 |
VIK2412-V (115V) |
---- |
VIK2412-X |
---- |
|
1/2 |
5,000 |
4,250 |
3,430 |
---- |
170 |
VIK2413-V (115V) VIK2413-W (230V) |
VIK2413T-U |
VIK2413-X |
VIK2413T-X |
|
|
30” |
1/3 |
7,080 |
6,050 |
4,940 |
---- |
181 |
VIK3012-V (115V) |
---- |
---- |
---- |
|
1/2 |
9,180 |
7,880 |
6,430 |
---- |
181 |
VIK3013-V (115V) VIK3013-W (230V) |
VIK3013T-U |
VIK3613-X |
---- |
|
|
3/4 |
9,840 |
8,650 |
7,190 |
---- |
185 |
VIK3014-U |
VIK3014T-U |
VIK3014-X |
VIK3014T-X |
|
|
36” |
1/2 |
10,800 |
8,840 |
6,550 |
---- |
200 |
VIK3613-V (115V) VIK3613-W (230V) |
---- |
VIK3613-X |
---- |
|
3/4 |
11,100 |
7,850 |
4,380 |
---- |
205 |
VIK3614-U |
VIK3614T-U |
VIK3614-X |
VIK3614T-X |
|
|
1 |
12,100 |
9,030 |
5,970 |
---- |
215 |
VIK3615-U |
VIK3615T-U |
VIK3615-X |
---- |
|
|
1-1/2 |
13,110 |
9,820 |
6,450 |
---- |
230 |
VIK3616-U |
---- |
VIK3616-X |
---- |
|
|
2 |
12,780 |
11,790 |
10,800 |
8,250 |
270 |
VIK3617-U |
---- |
VIK3617-X |
---- |
|
|
3 |
15,400 |
14,200 |
13,000 |
9,970 |
327 |
---- |
---- |
VIK3618-X |
---- |
|
|
42” |
1/2 |
13,000 |
9,730 |
4,270 |
---- |
230 |
VIK4213-V (115V) |
---- |
VIK4213-X |
---- |
|
3/4 |
14,600 |
12,000 |
6,780 |
---- |
235 |
VIK4214-U |
VIK4214T-U |
VIK4214-X |
VIK4214T-X |
|
|
1 |
16,000 |
11,600 |
6,040 |
---- |
250 |
VIK4215-U |
VIK4215T-U |
VIK4215-X |
---- |
|
|
1-1/2 |
17,200 |
14,700 |
10,800 |
---- |
265 |
VIK4216-U |
---- |
VIK4216-X |
VIK4216T-X |
|
|
2 |
16,800 |
15,100 |
13,200 |
---- |
290 |
---- |
---- |
VIK4217-X |
VIK4217T-X |
|
|
48” |
3/4 |
19,100 |
14,300 |
6,160 |
---- |
280 |
VIK4814-U |
VIK4814T-U |
VIK4814-X |
VIK4814T-X |
|
1 |
20,600 |
16,000 |
7,770 |
---- |
285 |
VIK4815-U |
VIK4815T-U |
VIK4815-X |
---- |
|
|
1-1/2 |
21,500 |
16,400 |
10,400 |
---- |
300 |
VIK4816-U |
---- |
VIK4816-X |
VIK4816T-X |
|
|
2 |
21,100 |
19,000 |
16,500 |
---- |
325 |
VIK4817-U |
---- |
VIK4817-X |
VIK4817T-X |
|
|
3 |
23,700 |
21,500 |
19,300 |
---- |
410 |
VIK4818-U |
---- |
VIK4818-X |
VIK4818T-X |
|
|
5 |
28,800 |
26,800 |
24,500 |
18,400 |
425 |
VIK4819-W (230V) |
---- |
VIK4819-X |
VIK4819T-X |
|
|
54” |
2 |
25,500 |
22,300 |
19,900 |
---- |
460 |
VIK5417-U |
---- |
VIK5417-X |
VIK5417T-X |
|
3 |
29,800 |
27,100 |
24,600 |
---- |
470 |
VIK5418-U |
---- |
VIK5418-X |
VIK5418T-X |
|
|
5 |
37,300 |
35,000 |
32,600 |
26,500 |
490 |
VIK5419-W (230V) |
---- |
VIK5419-X |
VIK5419T-X |
|
|
60” |
2 |
30,800 |
27,800 |
23,900 |
---- |
555 |
VIK6017-U |
---- |
VIK6017-X |
VIK6017T-X |
|
3 |
34,700 |
31,700 |
28,700 |
20,800 |
565 |
VIK6018-U |
---- |
VIK6018-X |
VIK6018T-X |
|
|
5 |
43,500 |
40,600 |
37,200 |
30,500 |
575 |
VIK6019-W (230V) |
---- |
VIK6019-X |
VIK6019T-X |
|
|
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 All units are made to order and are non-returnable.
For additional accessories such as weather hoods and motorized dampers, go to bottom of page after product selection. |
