Soler & Palau brand Model STXD Centrifugal Roof/Sidewall Upblast Exhaust Fan

Options:

Price: $647.09

SKU: STXD06CJH1AS

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

APPLICATION

Isolation of the motor from the air stream and the high velocity vertical (roof) or horizontal (wall) air discharge make the Model STXD ideally suited for the removal of dirty, contaminated and/or high temperature air from processes and buildings. Typical applications include restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

The non-overloading wheel with its higher static pressure capability makes this unit suitable for either ducted or nonducted applications. Its roof or wall mounting permits location near the area to be ventilated, allowing short duct runs and more efficient operation. Direct drive units use smaller diameter wheels, resulting in low sound levels and quiet operation. They have no belts or fan bearings to maintain or adjust and consequently require very little maintenance.

Models 6 thru 8 Not Suitable for Restaurant Grease Extraction Applications

Product Bulletin (429 kb)

Accessories (3.58 Mb)

Installation Operation and Maintenance Manual (119 kb)

Model STXD	Motor HP	Max BHp.	RPM	Sones @ 1/8" S.P.	CFM at Static Pressure									115V/1 Ph/60 Hz Stock No.	208-230/1 Ph/60 Hz Stock No.
Model STXD	Motor HP	Max BHp.	RPM	Sones @ 1/8" S.P.	0"	1/8"	1/4"	3/8"	1/2"	5/8"	3/4"	7/8"	1"	115V/1 Ph/60 Hz Stock No.	208-230/1 Ph/60 Hz Stock No.
6	1/10	.05	1650	7.1	225	208	191	172	149	115	56	-	-	STXD06CJH1AS	STXD06CJH1CS
6	1/10	.05	1650	7.2	308	285	259	231	194	133	68	-	-	STXD06JH1AS	STXD06JH1CS
7	1/10	.04	1650	7.1	437	394	345	287	223	145	80	-	-	STXD07JH1AS	STXD07JH1CS
8	1/25	.04	1150	6.0	612	531	427	-	-	-	-	-	-	STXD08HM1AS	-
8	1/4	.14	1750	10.9	935	881	832	773	712	636	536	312	-	STXD08MH1AS	STXD08MH1CS
10	1/4	.12	1150	7.7	979	886	777	657	452	-	-	-	-	STXD10RHULMM1AS	STXD10RHULMM1CS
10	1/3	.28	1700	13.8	1445	1385	1319	1248	1175	1100	1015	922	809	STXD10RHULPH1AS	STXD10RHULPH1CS
12	1/4	.15	1150	8.5	1284	1155	1031	883	701	-	-	-	-	STXD12RHULMM1AS	STXD12RHULMM1CS
12	1/2	.40	1700	15.3	1918	1831	1751	1665	1574	1485	1367	1282	1168	STXD12RHULQH1AS	STXD12RHULQH1CS
14	1/4	.26	1100	12.4	2148	1998	1830	1651	1411	1077	-	-	-	STXD14RHULMM1AS	STXD14RHULMM1CS
15	1/2	.39	1150	14.0	2643	2501	2384	2215	2048	1887	1670	1298	-	STXD15RHULQM1AS	STXD15RHULQM1CS
16	1/2	.49	1150	14.4	3187	3043	2904	2749	2577	2383	2154	1877	-	STXD16RHULQM1AS	STXD16RHULQM1CS

Speed (RPM) shown is nominal. Performance is based on actual speed test.
Performance certified is for installation type A-free inlet, free outlet.
Performance ratings do not include the effects of bird screen in the air stream.

The sound ratings shown are the loudness values in the fan sones @ 5' (1.5m) in an hemispherical fee field calculated per AMCA Standard 301. Installation Type A: free inlet hemispherical sone levels.

NOTE: This Product Is Not Available to Ship to Canada

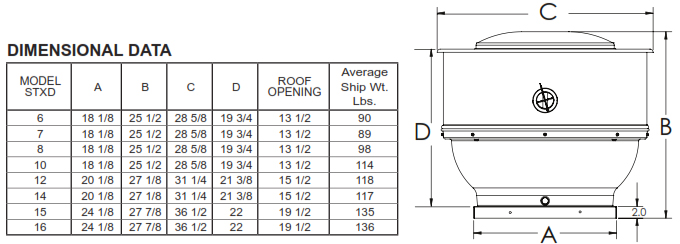

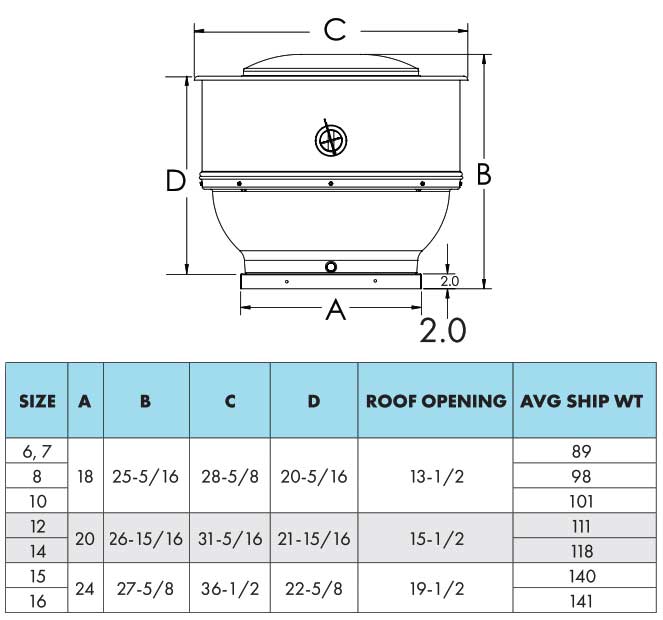

CONSTRUCTION

Housing

• Heavy-gauge aluminum for extra strength with pre-punched mounting holes.

• Stainless steel exterior fasteners.

• Enclosed, ventilated motor compartment isolates motor from exhaust air.

• Neoprene isolators for reduction of vibration and sound.

• The motor compartment housing easily removes for complete maintenance access.

• Water-tight conduit tube for easy electrical connection.

the breather tube.

• Mounted disconnect is included on standard models.

Centrifugal Wheel

• Non-overloading backward inclined for safe operation in ducted systems.
