Soler & Palau brand Belt Drive Propeller Industrial Wall Exhaust Fan

Options:

Price: $628.16

SKU: LCE20MHIS

Description
Reviews

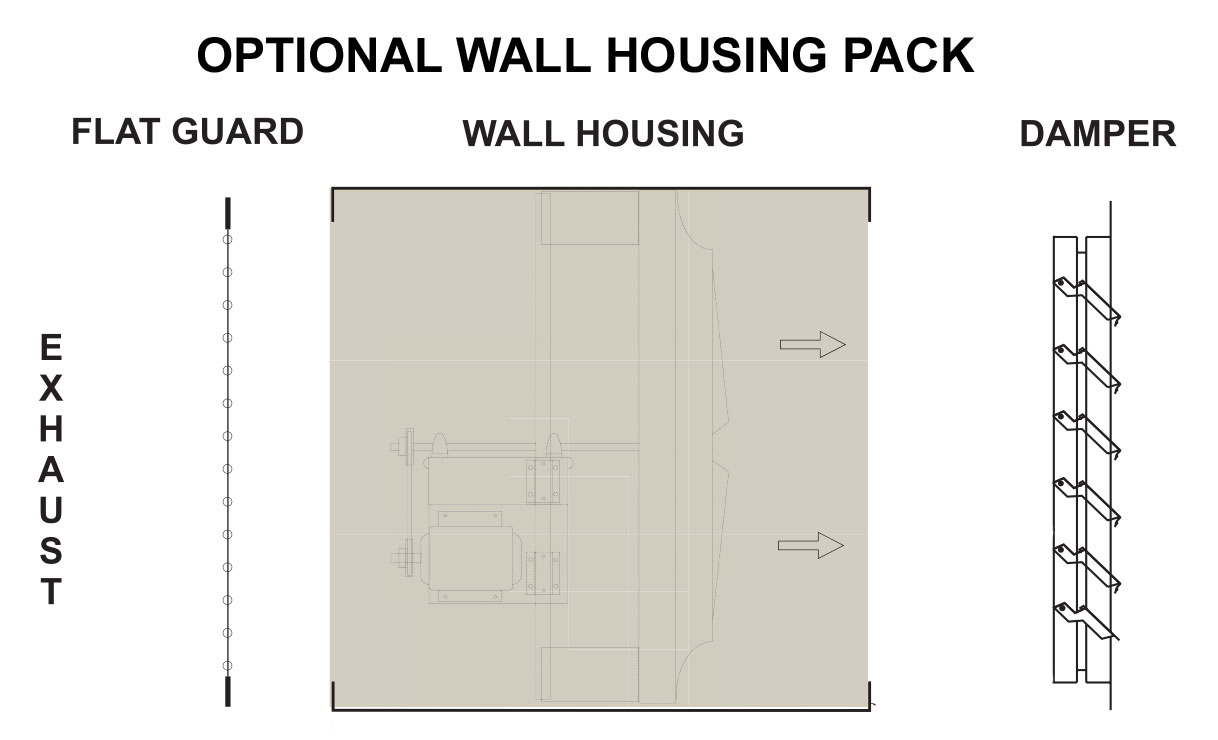

Wall Housing Pack (Includes Wall Housing, Inlet Guard and Gravity Damper - Fully Assembled) *See Accessories Link Below for Dimensions

APPLICATION

Model LCE (exhaust) is a high capacity belt driven propeller fan. Its primary application is the exhaust of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry and greenhouses. Belt driven fans provide large volumes of air at low fan speeds and low noise levels and afford quick, easy performance adjustments. When suspended from the ceiling, thus keeping floor spaces open, model LC can be installed to direct large volumes of air downward toward work centers improving employee comfort and productivity.

CONSTRUCTION:

Panel Assembly
• Heavy-gauge galvanized steel.
• All welded motor & drive support frame assembly.
• Prepunched mounting holes.
Propeller
• Die formed galvanized steel blades.
• Epoxy coated hub keyed to fan shaft.
• Statically and dynamically balanced.

Drives
• Sized for minimum 150% of drive horsepower.
• Single belt adjustable pitch sheaves through 3 HP.
• Nonstatic v-belts.
Bearings
• Designed for minimum 200,000 hour life.
• Bearings are sealed, prelubricated with relube fittings.
Motors
• Open drip-proof construction is standard.
• All motors mounted and factory run tested.

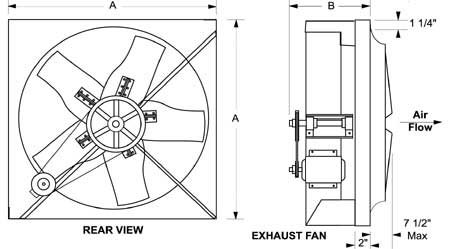

Dimensional Data
Model LC	A	B	Wall Opening Required
20	24”	15”	25-1/2” Sq.
24	30"	15"	31-1/2" Sq.
30	36"	15"	37-1/2" Sq.
36	42"	15"	43-1/2" Sq.
42	48"	16"	49-1/2" Sq.
48	54"	16"	55-1/2" Sq.
54	60"	20"	61-1/2" Sq.
60	66"	20"	67-1/2" Sq.

Printable Cut Sheet (1.93 Mb)

Accessories (4.58 Mb)

Installation & Operation Manual (1.07 Mb)

NOTE: This Product Is Not Available to Ship to Canada and Must Ship to a Commercial Address.

120V 1 Phase/60 Hz Model Number	208-230/460V 3 Phase/60 Hz Model Number	Blade Dia.	H.P.	SONES @ 0" SP	RPM	Approx. Wt. (lbs)	0" S.P.	1/10" S.P.	1/8" S.P.	1/4" S.P.	3/8" S.P.	1/2" S.P.
120V 1 Phase/60 Hz Model Number	208-230/460V 3 Phase/60 Hz Model Number	Blade Dia.	H.P.	SONES @ 0" SP	RPM	Approx. Wt. (lbs)	CFM	CFM	CFM	CFM	CFM	CFM
LCE20MH1S	LCE20MH3S	20”	1/4	11.5	955	85	3,983	3,600	3,491	-	-	-
LCE20PH1S	LCE20PH3S	20”	1/3	13.5	1050	85	4,379	4,038	3,941	3,312	-	-
LCE20QH1S	LCE20QH3S	20”	1/2	16.4	1180	85	4,921	4,625	4,543	4,081	3,182	-
LCE20RH1S	LCE20RH3S	20”	3/4	20.0	1350	85	5,630	5,377	5,308	4,934	4,462	3,538
LCE24MHIS	LCE24MH3S	24"	1/4	10.2	600	90	5,331	4,652	4,431	2,269	-	-
LCE24PHIS	LCE24PH3S	24"	1/3	12.1	660	90	5,864	5,268	5,086	3,702	-	-
LCE24QHIS	LCE24QH3S	24"	1/2	15.7	760	90	6,753	6,254	6,112	5,212	-	-
LCE24RHIS	LCE24RH3S	24"	3/4	19.8	875	90	7,775	7,352	7,237	6,562	5,600	-
LCE24SHIS	LCE24SH3S	24"	1	22.0	950	90	8,441	8,057	7,953	7,369	6,625	5,559
LCE24THIS	LCE24TH3S	24"	1.5	28.00	1100	90	9,774	9,447	9,361	8,894	8,347	7,688
LCE30MHIS	LCE30MH3S	30"	1/4	9.0	450	100	7,365	6,062	5,572	-	-	-
LCE30PHIS	LCE30PH3S	30"	1/3	10.5	495	100	8,101	6,954	6,603	-	-	-
LCE30QHIS	LCE30QH3S	30"	1/2	13.3	565	100	9,247	8,271	7,995	6,052	-	-
LCE30RHIS	LCE30RH3S	30"	3/4	17.1	650	100	10,638	9,853	9,594	8,198	-	-
LCE30SHIS	LCE30SH3S	30"	1	20.0	715	100	11,702	11,021	10,802	9,659	8,052	-
LCE30THIS	LCE30TH3S	30"	1.5	24.0	815	100	13,339	12,773	12,599	11,609	10,482	9,013
LCE36PHIS	LCE36PH3S	36"	1/3	9.7	390	105	10,755	8,745	7,976	-	-	-
LCE36QHIS	LCE36QH3S	36"	1/2	11.9	440	105	12,133	10,449	9,923	-	-	-
LCE36RHIS	LCE36RH3S	36"	3/4	15.3	505	105	13,926	12,485	12,100	9,348	-	-
LCE36SHIS	LCE36SH3S	36"	1	18.1	555	105	15,305	14,018	13,663	11,419	-	-
LCE36THIS	LCE36TH3S	36"	1.5	22.0	635	105	17,511	16,413	16,111	14,497	12,146	-
LCE36VHIS	LCE36VH3S	36"	2	25.0	695	105	19,165	18,176	17,907	16,499	14,594	12,363
LCE42PHIS	LCE42PH3S	42"	1/3	8.4	305	110	13,173	9,658	8,439	-	-	-
LCE42QHIS	LCE42QH3S	42"	1/2	9.8	345	110	14,901	12,109	11,073	-	-	-
LCE42RHIS	LCE42RH3S	42"	3/4	12.6	395	110	17,060	14,724	14,044	7,292	-	-
LCE42SHIS	LCE42SH3S	42"	1	14.9	435	110	18,788	16,703	16,128	12,182	-	-
LCE42THIS	LCE42TH3S	42"	1.5	18.8	500	110	21,596	19,833	19,339	16,470	11,827	-
LCE42VHIS	LCE42VH3S	42"	2	22.00	550	110	23,755	22,182	21,746	19,393	16,034	-
LCE48QHIS	LCE48QH3S	48"	1/2	10.0	290	125	17,979	13,841	12,199	-	-	-
LCE48RHIS	LCE48RH3S	48"	3/4	12.1	330	125	20,459	16,949	15,969	-	-	-
LCE48SHIS	LCE48SH3S	48"	1	14.3	365	125	22,629	19,504	18,659	10,868	-	-
LCE48THIS	LCE48TH3S	48"	1.5	17.8	415	125	25,729	23,054	22,306	17,746	-	-
LCE48VHIS	LCE48VH3S	48"	2	21.0	455	125	28,209	25,800	25,148	21,574	15,382	-
LCE54RHIS	LCE54RH3S	54"	3/4	11.0	270	240	23,384	-	17,932	-	-	-
LCE54SHIS	LCE54SH3S	54"	1	13.1	295	240	25,550	-	20,825	-	-	-
LCE54THIS	LCE54TH3S	54"	1.5	16.8	340	240	29,447	-	25,449	19,183	-	-
LCE54VHIS	LCE54VH3S	54"	2	19.4	370	240	32,045	-	28,375	23,692	-	-
LCE54WH3S	LCE54WH3S	54"	3	24.0	425	240	36,809	-	33,585	30,290	24,785	15,677
LCE60SHIS	LCE60SH3S	60"	1	11.5	265	285	28,491	-	22,275	-	-	-
LCE60THIS	LCE60TH3S	60"	1.5	14.3	300	285	32,254	-	27,023	-	-	-
LCE60VHIS	LCE60VH3S	60"	2	17.1	335	285	36,017	-	31,464	25,399	-	-
LCE60WH3S	LCE60WH3S	60"	3	21.0	380	285	40,855	-	36,826	32,244	29,351	-

*All models 1/4 thru 1/2 H.P. motors are available in 115V or 208-230/460V.
Tri-voltage (115-208-230V) is standard on 3/4 through 1 1/2 H.P motors.
3 Phase 208-230/460V is available on all models.
