14 Ft. Air Series Gearless (HVLS) High Volume Low Speed Industrial Ceiling Fan w/LED Light (800W, 100-240V, 1 Ph, 98,440 CFM, Var. Speed) Includes VFD Speed Controller with Handheld Remote
14' Printable Brochure (905 Kb)Installation Guide (1,028 Kb)
Electrical Installation Guide (6,236 Kb)
Warranty Brochure (216 Kb)
Price:
$4,777.93
 |
 |
|
||||
| Variable Frequency Drive - Included | Handheld Remote - Included | ||||
| Ceiling Fan Comes with VFD Speed Controller with Reversing Switch, A Handheld Remote that Works Directly with the VFD Speed Controller and All Mounting Hardware with a 59in Down Rod. | |||||
 |
|||||
| Mounting Hardware and 59" Down Rod - Included | |||||
| FEATURES
• Proprietary aluminum airfoils designed for maximum airflow with minimal power consumption
• High-efficiency, high-torque, maintenance-free permanent magnet synchronous motor (PMSM)
• Super bright LED light ideal for warehouses and industrial facilities
• Near-silent operation at <40 dBA*
• Rugged yet lightweight construction for durability and ease-of-install
• Promotes IEQ (indoor environmental quality) per ASHRAE 55
|
| PROPRIETARY AIRFOILS Inspired by manufacturing innovations in industrial and equipment fan technology, the AIR Series five aircraft-grade, anodized aluminum blades deliver industry-leading CFM/Watt efficiency. |
| PREMIUM DIRECT DRIVE MOTOR The IP57-rated permanent magnet synchronous motor (PMSM) reduces maintenance needs and ensures lasting reliability, eliminating issues typically associated with gearbox motors. |
| REDUNDANT SAFETY FEATURES UL 507 certified for complete system safety. Airfoil blade retainers, steel guy cables, impact auto-stop, fire relay integration, and emergency shutoff switch. |

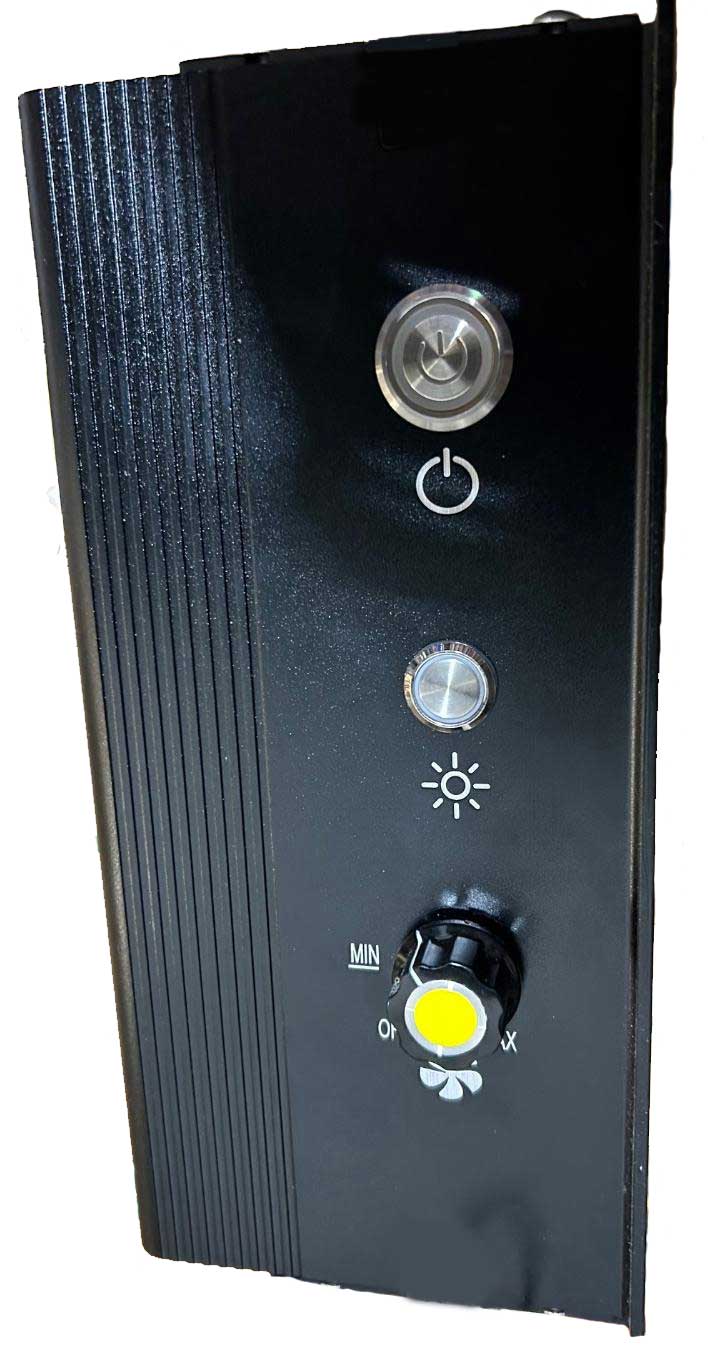

| VARIABLE-SPEED CONTROLLER + REMOTE Featuring a ground-level variable frequency drive for ease of access, the system also includes a wireless remote for convenient fan and LED light control. |
| FLEXIBLE MOUNTING OPTIONS Includes standard mounting hardware for multiple configurations such as I-beams, solid beams, angle iron, pitched roofs, and square tubes, with optional kits for purlins and other structures. |
| LIMITED WARRANTY 15-year mechanical; 5-year motor; 3-year electrical. |
|
TECHNICAL SPECIFICATIONS
- Fans is 14' in diameter. Number of Blades = 5. Fan Weight = 75lbs
- Capable of moving 98,440 CFM, 25/75 Min/Max RPM, <40 dBA Max Speed (Sound)
- Operates on 800 W Motor Rating,200-240 VAC ±10%, 50/60 Hz, 1Ø Standard
- Variable frequency drive provides soft start & full variable speed operation.
- Creates a non-disruptive air flow and is reversible
|
