Exhaust Fans → Roof Exhaust Fans → Soler & Palau USA brand Model STXB Belt Drive Centrifugal Up Blast Roof Mount Exhaust Fan or Wall Mount Restaurant & Gen. Applic. CFM Range: 3,194 - 8,736
Soler & Palau USA brand Model STXB Belt Drive Centrifugal Up Blast Roof Mount Exhaust Fan or Wall Mount Restaurant & Gen. Applic. CFM Range: 3,194 - 8,736
Price:
$1,363.36
Price:
$1,387.03
Price:
$1,389.99
Price:
$1,418.18
Price:
$1,472.93
Price:
$1,428.56
Price:
$1,510.75
Price:
$1,438.75
Price:
$1,583.41
Price:
$1,459.26
Price:
$1,613.89
Price:
$1,489.03
Price:
$1,525.62
Price:
$1,506.11
Price:
$1,555.25
Price:
$1,537.91
Price:
$1,650.22
Price:
$1,542.24
Price:
$1,730.86
Price:
$1,621.02
Price:
$1,745.22
Price:
$1,611.46
Price:
$1,781.12
Price:
$1,643.84
Price:
$1,580.50
Price:
$1,557.99
Price:
$1,610.27
Price:
$1,589.94
Price:
$1,725.70
Price:
$1,596.47
Price:
$1,762.48
Price:
$1,651.65
Price:
$1,824.68
Price:
$1,685.26
Price:
$1,862.58
Price:
$1,721.00
Price:
$1,810.38
Price:
$1,845.41
Price:
$1,853.26
Price:
$1,875.45
Price:
$1,956.24
Price:
$1,914.06
Price:
$1,989.84
Price:
$1,908.33
Price:
$1,944.88
Price:
$1,952.67
Product Bulletin (648 kb)
Roof Curb (660 kb)

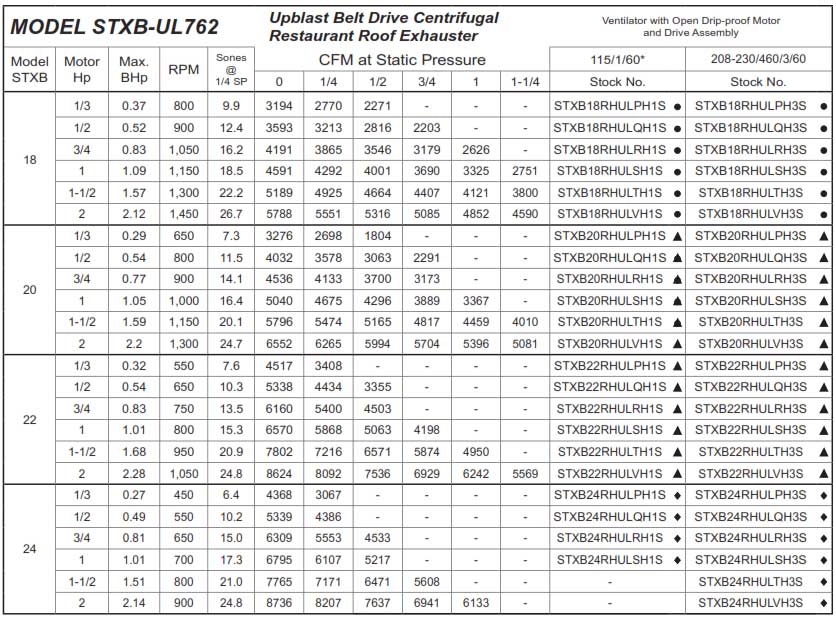

Power ratings (BHP) do not include transmission losses. Performance certified is for installation type A-free inlet, free outlet. Performance ratings do not include the effects of bird screen in the air stream. The sound ratings shown are the loudness values in the fan sones @ 5' (1.5m) in an hemispherical fee field calculated per AMCA Standard 301. Installation Type A: free inlet hemispherical sone levels. *Tri-voltage (115-208-230) is standard on 3/4 through 1 1/2 Hp Single phase motors. Tri-voltage is available for the 1/2 Hp motors.
NOTE: This Product Is Not Available to Ship to Canada |
|
CONSTRUCTION Housing
• Heavy-gauge aluminum for extra strength with prepunched mounting holes.
• Neoprene isolators for reduction of vibration and sound.
• Enclosed, ventilated motor/drive compartment isolates motor and drives from exhaust air.
• Cover easily removed for quick access electrical connection.
• The motor compartment housing easily removes for complete maintenance access.
• Water-tight conduit tube for easy electrical connection.
• External weather proof disconnect is included on standard models
• Lifting lugs for easy and safe placement on roof.
Centrifugal Wheel
• All aluminum backward inclined wheel.
• Nonoverloading for safe operation in ducted systems.
• Dynamically balanced for smooth operation.
Drives
• Sized for minimum 150% of drive horsepower.
• Machined cast iron adjustable motor pulleys.
• Adjustable base for belt tensioning.
• Nonstatic oil resistant v-belts.
Motors
• Single speed open drip-proof are standard.
• All motors are rated for continuous duty.
• 182T and larger motors shipped unmounted for field installation.
• Disconnect switch standard with single speed drip-proof motors.
Bearings
• Heavy-duty ball bearing type.
• Prelubricated and permanently sealed.
|
Models STXB18RHULPH1S, STXB18RHULPH3S, STXB18RHULQH1S, STXB18RHULQH3S, STXB18RHULRH1S, STXB18RHULRH3S, STXB18RHULSH1S
STXB18RHULSH3S, STXB18RHULTH1S, STXB18RHULTH3S, STXB18RHULVH1S, STXB18RHULVH3S, STXB20RHULPH1S, STXB20RHULPH3S
STXB20RHULQH1S, STXB20RHULQH3S, STXB20RHULRH1S, STXB20RHULRH3S, STXB20RHULSH1S, STXB20RHULSH3S, STXB20RHULTH1S
STXB20RHULTH3S, STXB20RHULVH1S, STXB20RHULVH3S, STXB22RHULPH1S, STXB22RHULPH3S, STXB22RHULQH1S, STXB22RHULQH3S, STXB22RHULRH1S, STXB20RHULR3S
